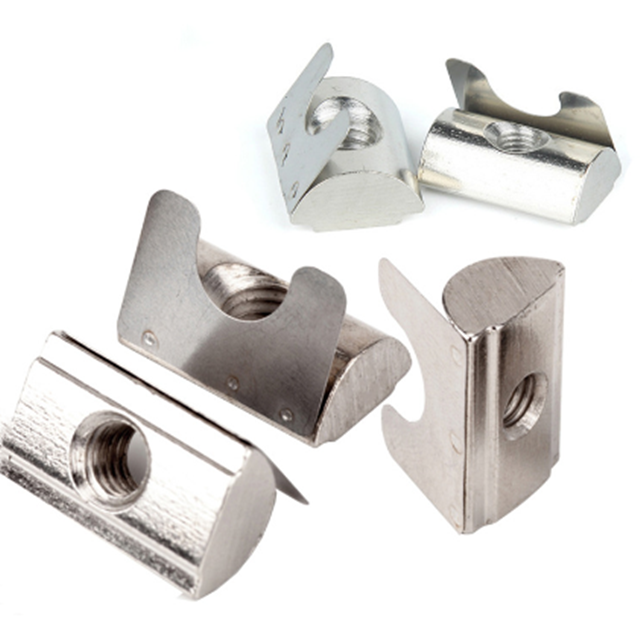

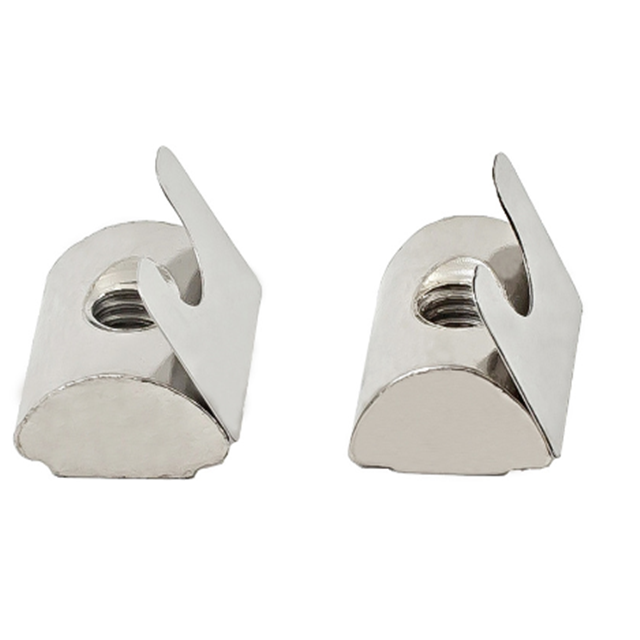

T Slot Rectangular Nuts With Position Fixing
Freely assemble into profile grooves.Securely held in position.
Product Introduction
>>Dimensions
| Description | Features | D | Unit Weight (g/pcs) | Part No. | ||||
| [PG30] | [PG40] | [PG45] | [PG50] | [PG60] | ||||
| Spring nuts, 10×4.5 |
| M4 | 5.5 | 30.3.03.4 |
n/a |
n/a |
n/a |
n/a |
| M5 | 5.0 | 30.3.03.5 | ||||||
| M6 | 5.0 | 30.3.03.6 | ||||||
| M8 | 4.5 | 30.3.03.8 | ||||||
| Spring nuts, 12×5.5 |
| M4 | 8.0 | n/a | 40.3.03.4 | 45.3.03.4 | 50.3.03.4 | 60.3.03.4 |
| M5 | 8.0 | n/a | 40.3.03.5 | 45.3.03.5 | 50.3.03.5 | 60.3.03.5 | ||
| M6 | 7.5 | n/a | 40.3.03.6 | 45.3.03.6 | 50.3.03.6 | 60.3.03.6 | ||
| M8 | 6.5 | n/a | 40.3.03.8 | 45.3.03.8 | 50.3.03.8 | 60.3.03.8 | ||
Features
- the spring assists with assembly and positioning of nuts
- flexible and efficient assembly, both pre-setting and post-setting are supported
- mainly used in frame constructed from PG30-PG60 with slot 8
