Hole Reducer Bolt,Threaded Insert Fasteners

Hole Reducer Bolt,Threaded Insert Fasteners

Feature: used with connection plate
Material: Zinc Plated Steel
Color: Sliver

Share:
Facebook
Twitter
LinkedIn

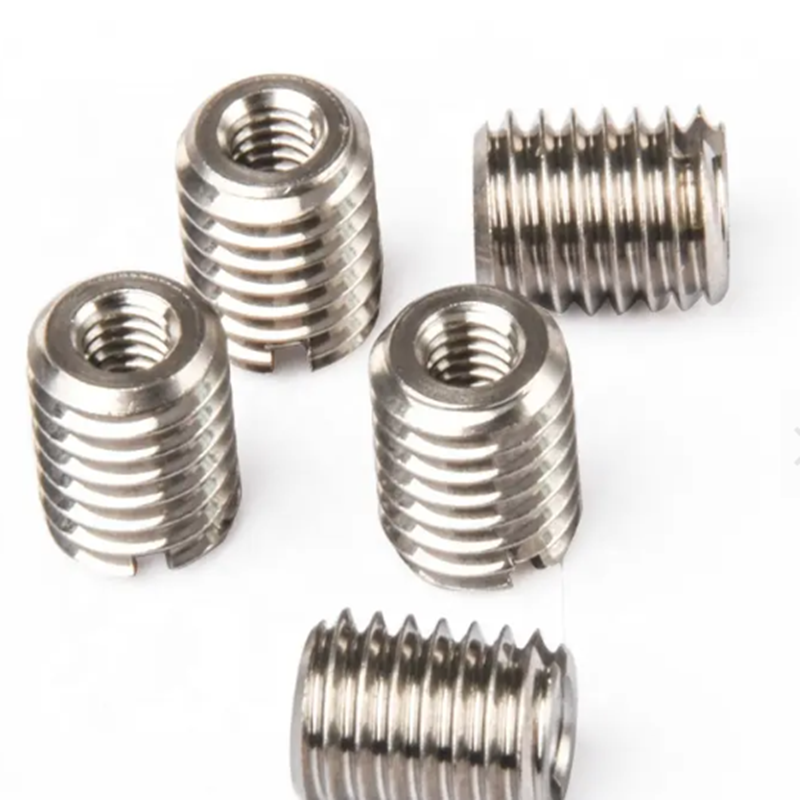

Hole Reducer Bolt

Bolt hole reducer widely used to reduce the core bore diameter of profiles. Such as connection between profiles and foot connecting plate.

Product Introduction

>>Dimensions

FeaturesModelL(mm)DGNW(g/pcs)PG30PG40PG45


M14/M620M14M61630.3.05.14.640.3.05.14.645.3.05.14.6
M14/M820M14M81330.3.05.14.840.3.05.14.845.3.05.14.8
M10/M620M10M68n/an/a45.3.05.10.6
M12/M620M12M68n/an/an/a
M16/M820M16M819n/an/an/a

Application

  • M14/M6 and M14/M8 could be used with core hole -Ø12(M14) of PG40/ PG40/ PG45/ PG50/ PG60.
  • M12/M6 is designed for the purposed of core hole reduction of PG30 – Ø10(M12).
  • M10/M6 is generally used with square corner hole – Ø8(M10) of PG45.
  • M16/M8 helps to reduce square corner hole size of PG60 – Ø14(M16).

Service

Your various requirements could be realized by our complete industrial chain, including:

  • standard kits ex-factory without assembly
  • pre-assembly available for hole reducer bolts and profiles

Note: please take into consideration the feasibility of transportation to optimize shipment cost if you choose assembly service.
