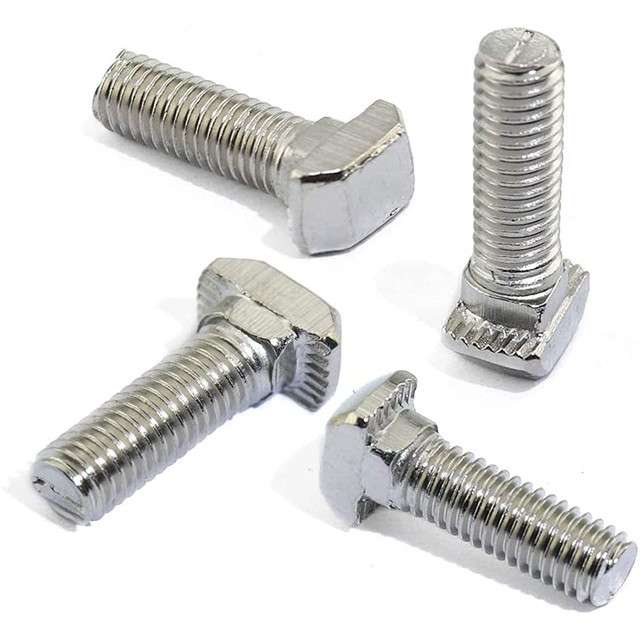

Hammer Head T Bolts

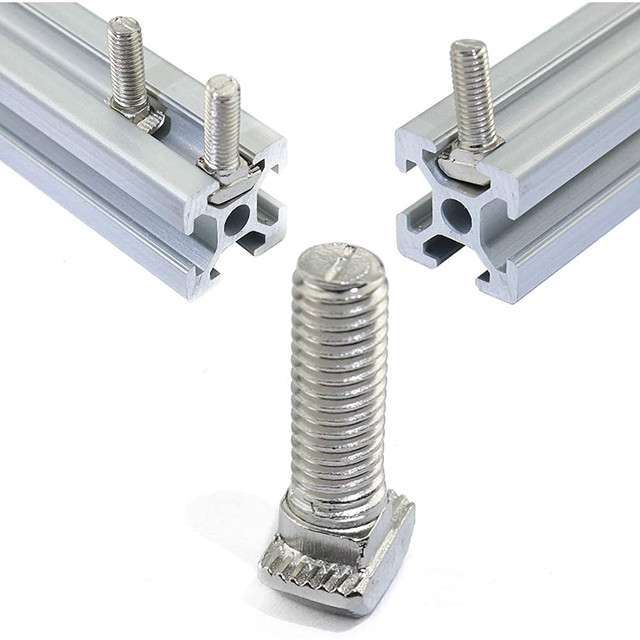

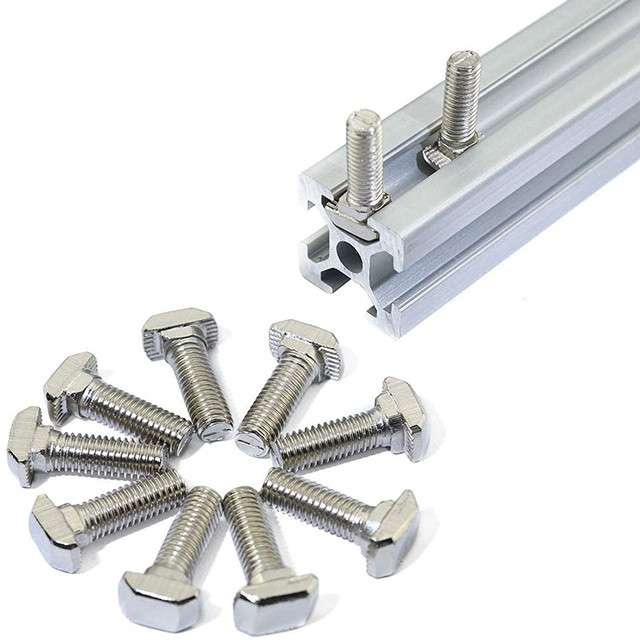

Simple fastening for components.Rapid hold by placing into groove and rotating.

Product Introduction

>>Dimensions

Description	Features	D	L	Unit Weight	Part No.
				(g/pcs)
					[PG30]	[PG40]	[PG45]	[PG50]	[PG60]
Hammerhead Bolts, M6		M6	20	10	30.3.04.20	n/a	n/a	n/a	n/a
			25	12	30.3.04.25
			30	14	30.3.04.30
			35	16	30.3.04.35
Hammerhead Bolts, M8		M8	20	11	n/a	40.3.04.20	45.3.04.20	50.3.04.20	60.3.04.20
			25	13		40.3.04.25	45.3.04.25	50.3.04.25	60.3.04.25
			30	15		40.3.04.30	45.3.04.30	50.3.04.30	60.3.04.30
			35	17		40.3.04.35	45.3.04.35	50.3.04.35	60.3.04.35
			40	18		40.3.04.40	45.3.04.40	50.3.04.40	60.3.04.40

Application

• T-head bolts are commonly used as fasteners together with nuts (matching D size).
• Synrise fasteners and accessories are compatible to Maytec profile system.
• Generally used to connect accessories with strut profile without drilling on profiles.
• Frequently used as fasteners for die cast bracket together with flange nuts.
