best Seller

European standard 40 industrial aluminum profiles

The European standard 40 basic frame profile is widely used in frame structures with moderate or heavy loads, such as machine frame structures, workbenches, material trucks, factory workshop partition,display rack, material rack, etc., is one of the most widely used profiles in the industrial field.

40 profile

aluminum profile PG 40 series

European standard 40 industrial aluminum profile, surface after silver bright oxidation treatment, slot width 8.2mm, center aperture Φ12, this series includes 4040 profile, 4080 profile, 40120 profile, 40160 profile and 8080 profile. The profiles of each specification can be divided into standard, light, heavy and ultra-light with the highest cost performance according to weight.

The 40 series T-slot industrial aluminum profiles have excellent load bearing capacity, providing the most economical, efficient and stable material choice for engineering design. It is usually possible to use 40 profile special anchor connection pins, which are connected by internal hiding, or by Angle aluminum for fixed Angle connection. The structure is strong and reliable, and is widely used in the design of frame structures in various factory workshops.

PG 40 Series

2 series modular dimensions 40 in stock:

-extruded aluminium t slot 8 with decorative molding on surface

-Strut profiles slot 10 with satin surface treatment. This series is designed with 10.2mm slots for applications with extremely strong connections.

Material: 6063-T6 Surface: Anodized Color: Silver
Effective length: 5800mm Cut section not anodized
Strut profile PG40, with 8.2mm T-slot, is designed for medium weight structure and heavy loading structures, such as machine frame, workstation, partition, exhibition frames, and machine enclosure, etc.
Description Moment of Inertia lx(cm4) Moment of Inertia ly(cm4) Moment of Resistance Wx(cm3) Moment of Resistance Wy(cm3) Mass (kg/m) Part No.
40×40, 2 slots, R90 7.5 7.5 3.80 3.80 1.45 40.1.040040.02.90
40×40, 2 slots, Type A 7.2 7.10 2.70 2.40 1.30 40.1.040040.02.01
40×40, 2 slots, Type B 7.40 7.00 3.70 3.50 1.30 40.1.040040.02.02
40×40, 4 slots, Light 6.5 6.50 3.25 3.25 1.20 00.1.040040.04.03.03

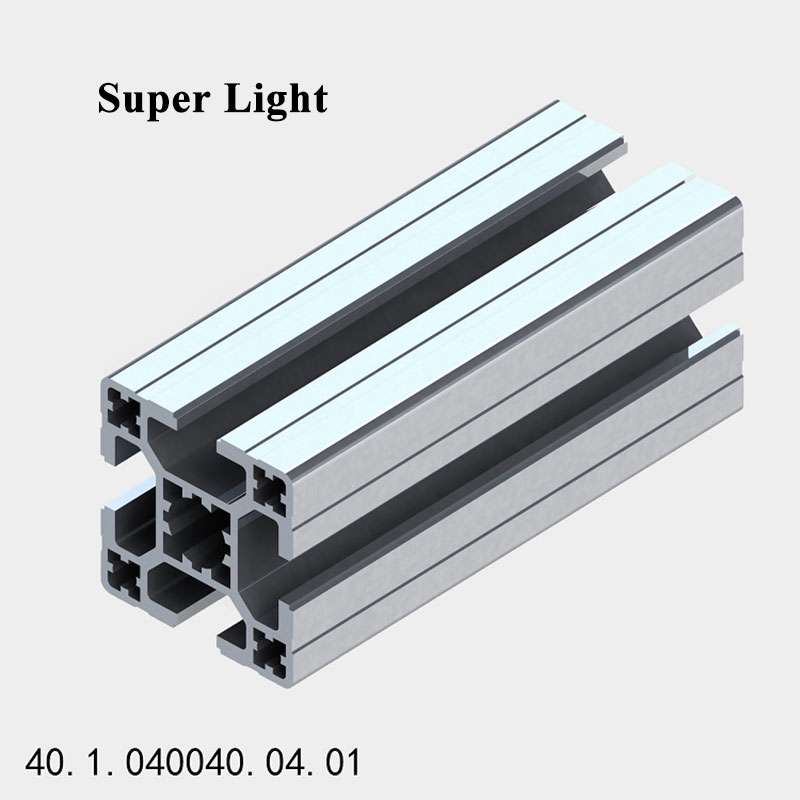

40×40, 4 slots 8.7 8.70 4.40 4.40 1.45 40.1.040040.04.01
40×40, 4 slots, Heavy 10.40 10.40 5.20 5.20 1.85 40.1.040040.04.02
40×60, 4 slots 12.80 25.90 6.40 8.60 2.15 40.1.040060.04.01
40×80, 6 slots 16.00 58.00 8.00 14.50 2.50 40.1.040080.06.01
40×80, 6 slots, Heavy 18.20 71.50 9.10 17.90 3.10 40.1.040080.06.02
40×80, 6 slots, Heavy 26.00 219.00 13.00 36.50 4.50 40.1.040120.08.02
40×160, 10 slots, Heavy 34.00 488.70 17.00 61.10 5.55 40.1.040160.10.02
80×80, 8 slots 100.60 100.60 25.20 25.20 3.90 40.1.080080.08.01
80×80, 8 slots, Heavy 126.30 126.30 31.60 31.60 5.10 40.1.080080.08.02
80×120, 10 slots, Heavy 186.40 374.60 62.40 46.70 7.10 40.1.080120.10.02
80×160, 12 slots, Heavy 231.20 780.70 57.80 97.60 8.30 40.1.080160.12.02

Customer Case

40 Aluminum Profile Connector & Fasteners

Flexibility and easy operation of assembly technology makes it possible for the factories to adapt to the rapidly changing environment and requirement.

Based on these features, we offers a comprehensive modular assembly system consist of aluminum profiles, connectors, fasteners and accessories.

With this integrated system, your requirements for upgrading production processes could be easily and fully met – from a simply assembled frame, material shuttle and storage rack through to machine guarding, protective devices, workbench and any imaginable profile applications.

Professional Service



Your various requirements could be realized by our complete industrial chain, including

extruded aluminium t slot
