Straight Line Connector,Extended Joint Profiles

Straight Line Connector,Extended Joint Profiles

Group:Connectors

Zinc plated CS

Color:Silver

Share:
Facebook
Twitter
LinkedIn

T Slot Linear Bar Connector

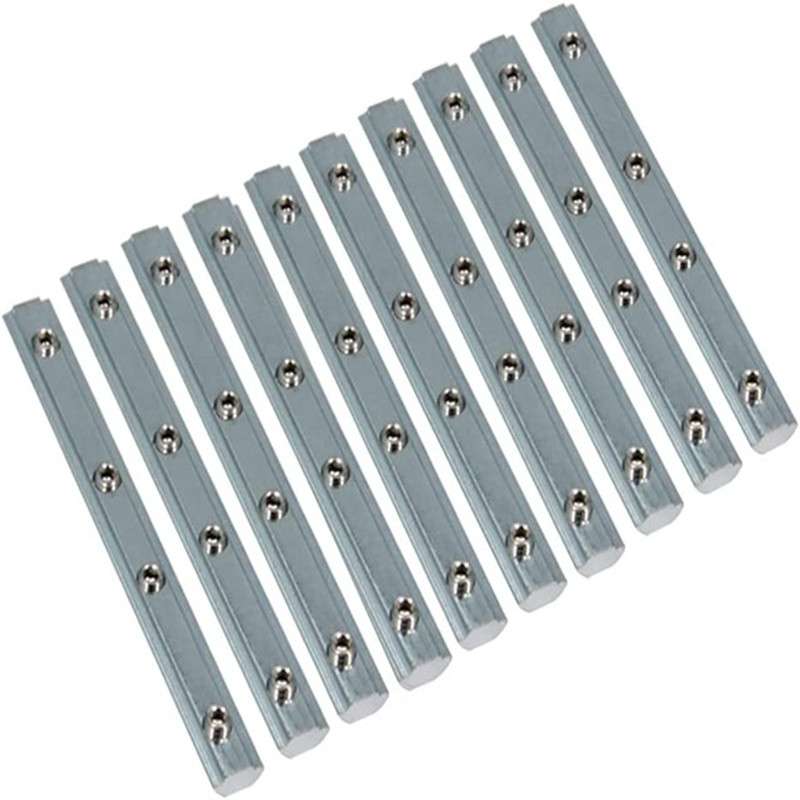

Linear connector used for extension of profiles.Prevent disposition of mating section.No fastening functions.

Product Introduction

>>Dimensions

DescriptionFeaturesMatching SlotUnit Weight

(g/pcs)

Matching

Profile

Part No.

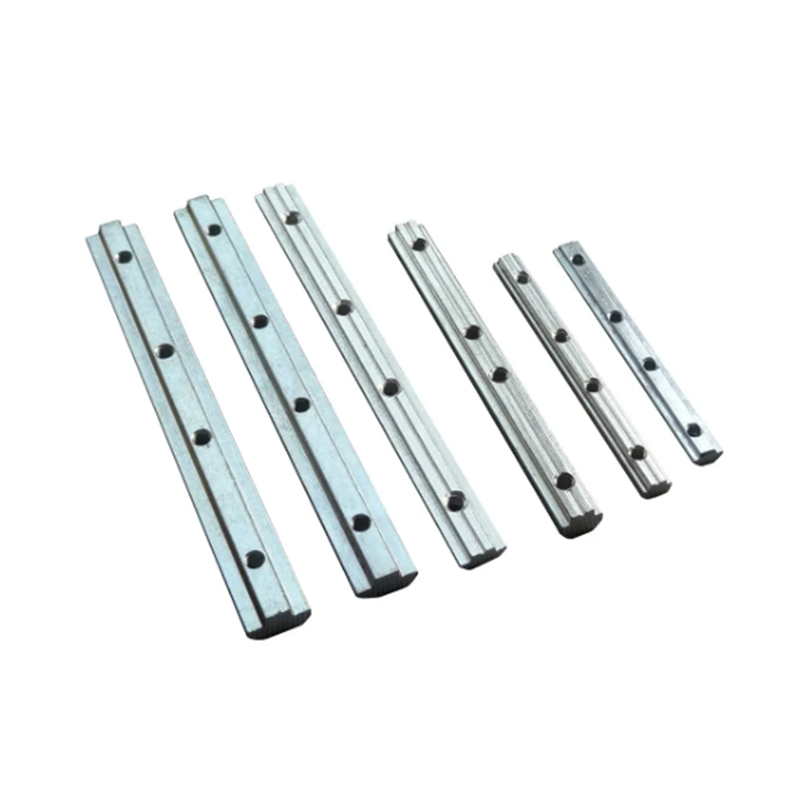

Linear Positioner

M5x6

Aluminum Profile Straight Line Connector27PG2020.2.07.01

Linear Positioner

M6x8

Aluminum Profile Straight Line Connector48PG3030.2.07.01

Linear Positioner

M6x8

Aluminum Profile Straight Line Connector90PG4040.2.07.01
PG4545.2.07.01

About Aluminum Profile Straight Line Connector

  • Used for 6mm slot standard 20mm aluminum extrusion profiles.

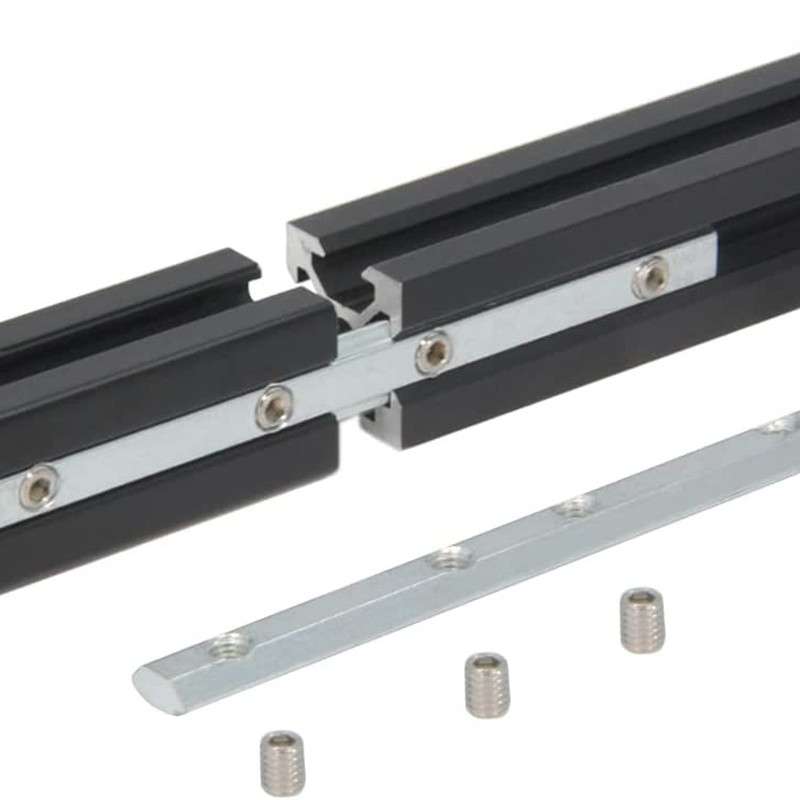

  • When it is installed,it is inserted into the pit of the butt joint of two profiles,and then tightened with set screw.
  • They are simple to use and convenient to connect aluminum profiles straight lengthened connection between two profiles.
  • Aluminum Profiles Straight Line Connector widely use to build CNC routers,3D printers,CNC laser cutters,CNC plasma cutters,robotics projects,3D carves,machine guards,workstations.etc.

Cautions Of Aluminum Profile Straight Line Connector

If extension of profile is in consideration of your design, please kindly pay attention to the following matters to avoid loss,

  • The linear bar connector is mainly designed for the purpose of profile surface alignment. Please avoid load bearing with this connector.
  • Please pay attention to the load of structure during design, if the frame faces overload possibility, our engineer team will propose adjustment for the sake of stability and safety.
