Aluminum Extrusion Profiles

300+ Tons of aluminum extrusion profile in stock
150 + compatible connectors and accessories
2000+ types of T-slot accessories
20 + dimensions of lean pipe frames

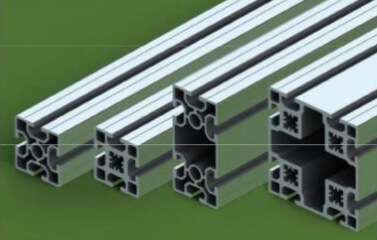

Industrial Aluminum Profile

Our profiles are German MAYTEC System, this system profile appearance surface unified, reasonable structural design, good ductility, connection accessories variety, powerful, flexible and varied between the accessories and profiles.
It is characterized by the use of anchor connection pin connection, which has the advantage of high connection strength and good concealment, and has the connection and locking function to ensure that there is no gap in the connection, and only one slot is occupied when connecting, which is convenient for the installation of plates, grids and other accessories. And can achieve 30° to 180° arbitrary Angle connection.

20 series

30 series

40 series

45 series

50 series

60 series

20 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm
	Cut section not anodized
	Strut profile PG20, with 6.2mm T-slot, is designed for light weight structure.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
20×20, 4 slots	0.70	0.70	0.70	0.70	0.55	20.1.020020.04
20×40, 6 slots	1.30	4.90	1.30	2.40	0.95	20.1.020040.06
20×80, 10 slots	2.50	34.80	2.50	8.70	1.75	20.1.020080.10
40×40, 8 slots	8.60	8.60	4.30	4.30	1.35	20.1.040040.08

30 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm
	Cut section not anodized
	Strut profile PG30, with 8.2mm T-slot, is designed for medium weight structures such as machine frame, trolley, workstation, exhibition frames, and partition frames.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
30×30, 2 slots, R90	2.4	1.5	1.6	1	0.8	30.1.030030.02.90
30×30, 2 slots, Type A	2.6	2.6	1.3	1.2	0.85	30.1.030030.02.01
30×30, 2 slots, Type B	2.7	2.6	1.8	1.7	0.85	30.1.030030.02.02
30×30, 4 slots	2.7	2.7	1.8	1.8	0.9	30.1.030030.04
30×60, 6 slots	5.3	19.5	3.5	6.5	1.6	30.1.030060.06
30×90, 8 slots	8.1	62.2	5.4	13.9	2.3	30.1.030090.08
30×120, 10 slots	10.9	142	7.2	23.7	3.1	30.1.030120.10
30×150, 12 slots	13.6	274.6	9.1	36.6	3.8	30.1.030150.12

40 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm Cut section not anodized
	Strut profile PG40, with 8.2mm T-slot, is designed for medium weight structure and heavy loading structures, such as machine frame, workstation, partition, exhibition frames, and machine enclosure, etc.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
40×40, 2 slots, R90	7.5	7.5	3.80	3.80	1.45	40.1.040040.02.90
40×40, 2 slots, Type A	7.2	7.10	2.70	2.40	1.30	40.1.040040.02.01
40×40, 2 slots, Type B	7.40	7.00	3.70	3.50	1.30	40.1.040040.02.02
40×40, 4 slots, Light	6.5	6.50	3.25	3.25	1.20	00.1.040040.04.03.03
40×40, 4 slots	8.7	8.70	4.40	4.40	1.45	40.1.040040.04.01
40×40, 4 slots, Heavy	10.40	10.40	5.20	5.20	1.85	40.1.040040.04.02
40×60, 4 slots	12.80	25.90	6.40	8.60	2.15	40.1.040060.04.01
40×80, 6 slots	16.00	58.00	8.00	14.50	2.50	40.1.040080.06.01
40×80, 6 slots, Heavy	18.20	71.50	9.10	17.90	3.10	40.1.040080.06.02
40×80, 6 slots, Heavy	26.00	219.00	13.00	36.50	4.50	40.1.040120.08.02
40×160, 10 slots, Heavy	34.00	488.70	17.00	61.10	5.55	40.1.040160.10.02
80×80, 8 slots	100.60	100.60	25.20	25.20	3.90	40.1.080080.08.01
80×80, 8 slots, Heavy	126.30	126.30	31.60	31.60	5.10	40.1.080080.08.02
80×120, 10 slots, Heavy	186.40	374.60	62.40	46.70	7.10	40.1.080120.10.02
80×160, 12 slots, Heavy	231.20	780.70	57.80	97.60	8.30	40.1.080160.12.02

45 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm
	Cut section not anodized
	Strut profile PG45, with 8.2mm T-slot, is designed for heavy loaded structures including machine structure frame, factory partition etc.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
45×45, 2 slots, R90	12.40	12.40	5.50	5.50	1.50	45.1.045045.02.90
45×45, 4 slots	14.20	14.20	6.40	6.40	1.90	45.1.045045.04.01
45×45, 4 slots, Heavy	16.40	16.40	7.30	7.30	2.60	45.1.045045.04.02

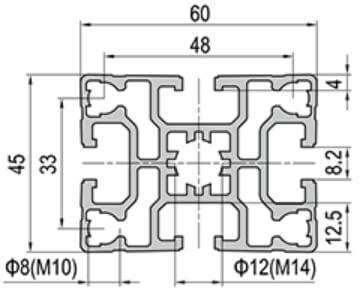

45×60, 4 slots	16.56	28.54	7.50	9.60	2.40	45.1.045060.04.01

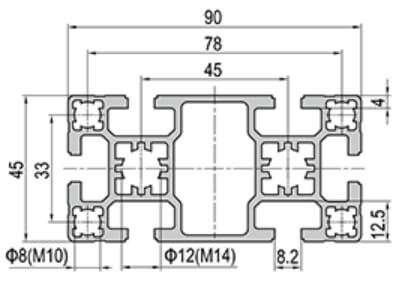

45×90, 6 slots	26.00	98.30	11.60	21.90	3.25	45.1.045090.06.01

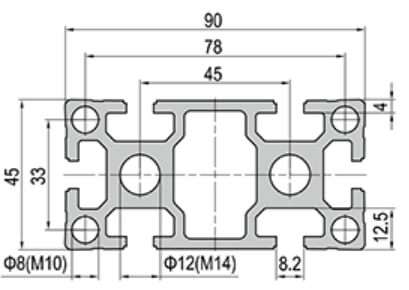

45×90, 6 slots, Heavy	30.40	121.50	13.50	27.00	4.45	45.1.045090.06.02

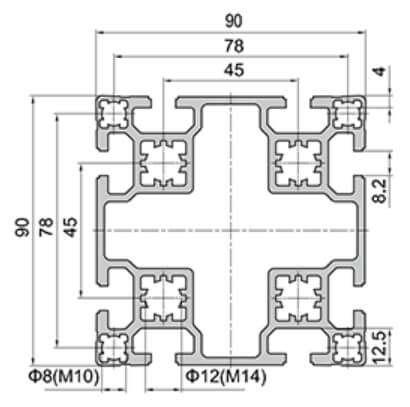

90×90, 8 slots	178.00	178.00	39.50	39.50	5.75	45.1.090090.08.01

50 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm
	Cut section not anodized
	Strut profile PG50, with 8.2mm T-slot, is designed for heavy loaded structures including machine structure frame, factory partition etc.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.

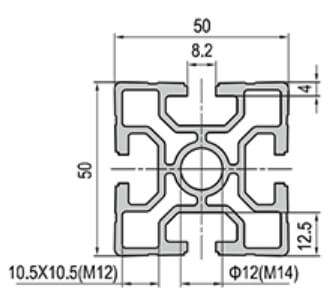

50×50, 4 slots	20.40	20.40	8.20	8.20	2.45	50.1.050050.04.01

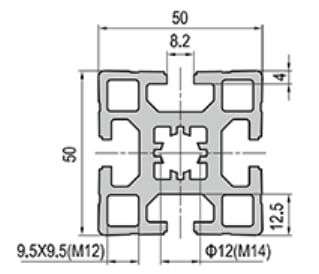

50×50, 4 slots, Heavy	24.90	24.90	10.00	10.00	3.20	50.1.050050.04.02

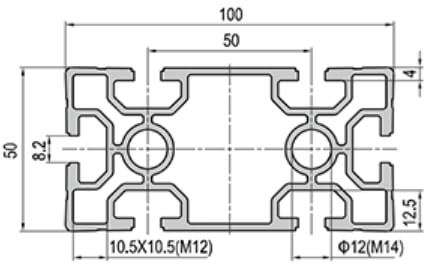

50×100, 6 slots	36.10	143.90	14.50	28.80	3.90	50.1.050100.06

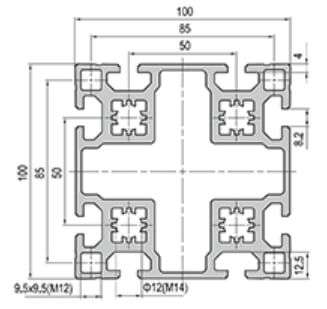

100×100, 8 slots, Heavy	327.00	327.00	65.40	65.40	8.60	50.1.100100.08.02

60 series

		Material: 6063-T5 Surface: Anodized Color: Silver
	Effective length: 5800mm
	Cut section not anodized
	Strut profile PG60, with 8.2mm T-slot, is designed for heavy loaded structures including machine structure frame, factory partition etc.

Picture	Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
	60×60, 4 slots	39.5	39.5	13.2	13.2	3.4	60.1.060060.04

Let's learn more about Synrise Industries

lean more

5 Videos

Synrise — Aluminum profile manufacturer

2:03

How To Assemble T-Slot Frames Using Corner Gusset

0:49

Aluminum Alloy Hinge -Countersink Hole And Through Hole

0：19

Play Video

Five Advantages

High quality material selection (high-quality 6063-T5 aluminumalloy, bright oxidation/frosted oxidation surface treatment)
Cutting (cutting angle, cutting) with a cutting accuracy of+/-0.5mm
Processing (pin hole, tapping, process hole, step hole)
Quality inspection (blowing aluminum shavings and removingburrs)
Packaging (inner non-woven protective film wrapping, outer papershell packaging)

2000 + types of T-slot accessories

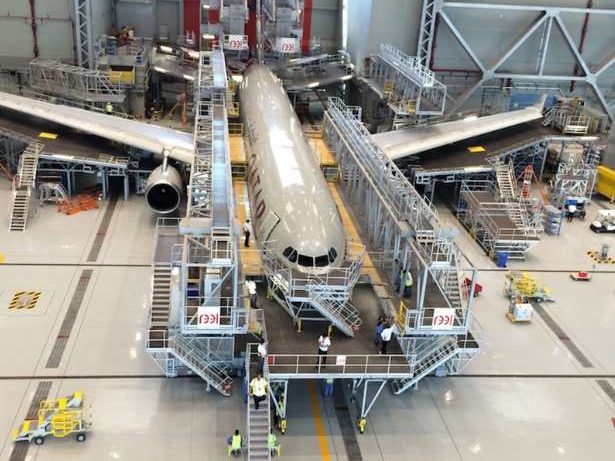

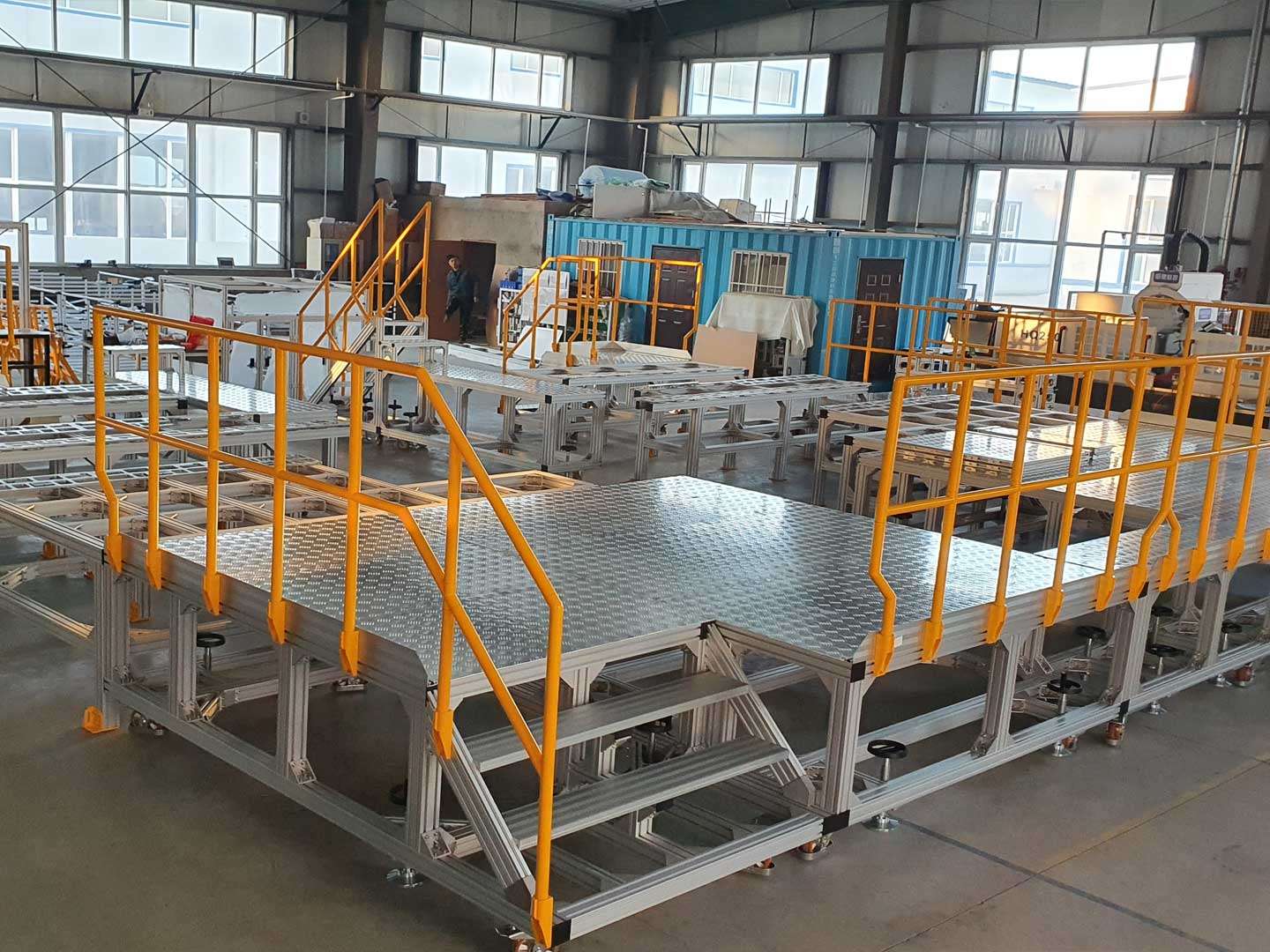

industrial platform stairs

The products include all kinds of Mobile Platform steps, Platform steps, Bridging steps, Aluminum step stools, Industrial walkways, etc. The products meet the requirements of domestic and foreign standards.

Get More

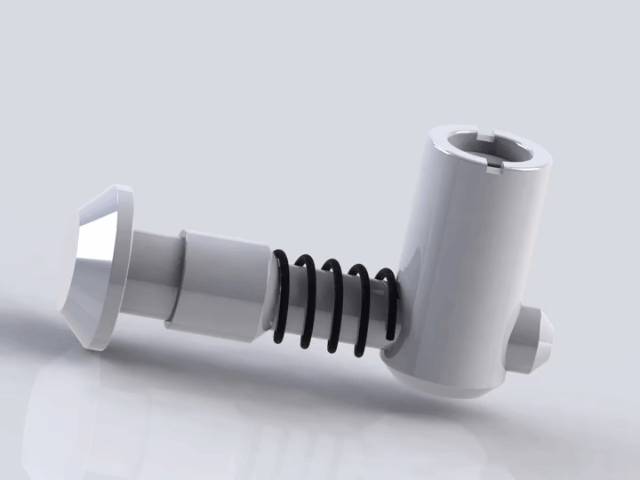

anchor connector series

Anchor connector is a typical connector for strut profiles with a large aperture. It has an excellent performance in panel assembly tasks, such as worktable, material shuttle, shelves etc. Connections changing from angle of 30° to 180° could be easily constructed with this powerful and flexible connector.

GET MORE

lean pipe

Lean Pipe aluminum profiles with high strength and lightweight design as the core advantage, made of high-quality aluminum alloy, excellent corrosion resistance and load-bearing properties. The modular structure supports fast assembly and flexible layout adjustment without welding to meet the needs of production line upgrading and storage optimization.

GET MORE

HINGE

For heavily loaded doors and lids. Durable metal design

GET MORE

die cast bracket

Die cast brackets are generally used for profile cross connections. Power-lock connection for heavy duty frames. Additional hold without profile machining for load-bearing supports.

GET MORE

Angle Bracket

Cut from extruded angle profile. Simple and fast profile connections. Used for medium load frames.

GET MORE

CASTOR

Synrise offer versatile casters for moving machinery and factory equipment easily from place to place. Including: >Casters with and without brake >Swivel and directional castors >Plate casters and screw casters

GET MORE

adjustable feet

The comprehensive adjustable feet are suitable for structures of all kinds. Mainly used as ground supporting kits for frames with limited mobility.

GET MORE

Nothing you want?

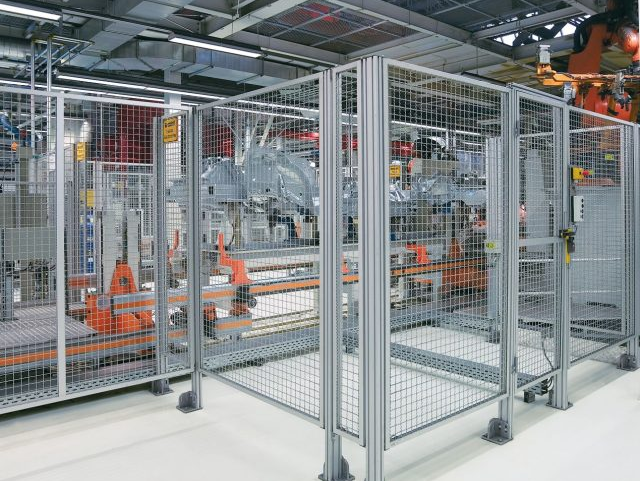

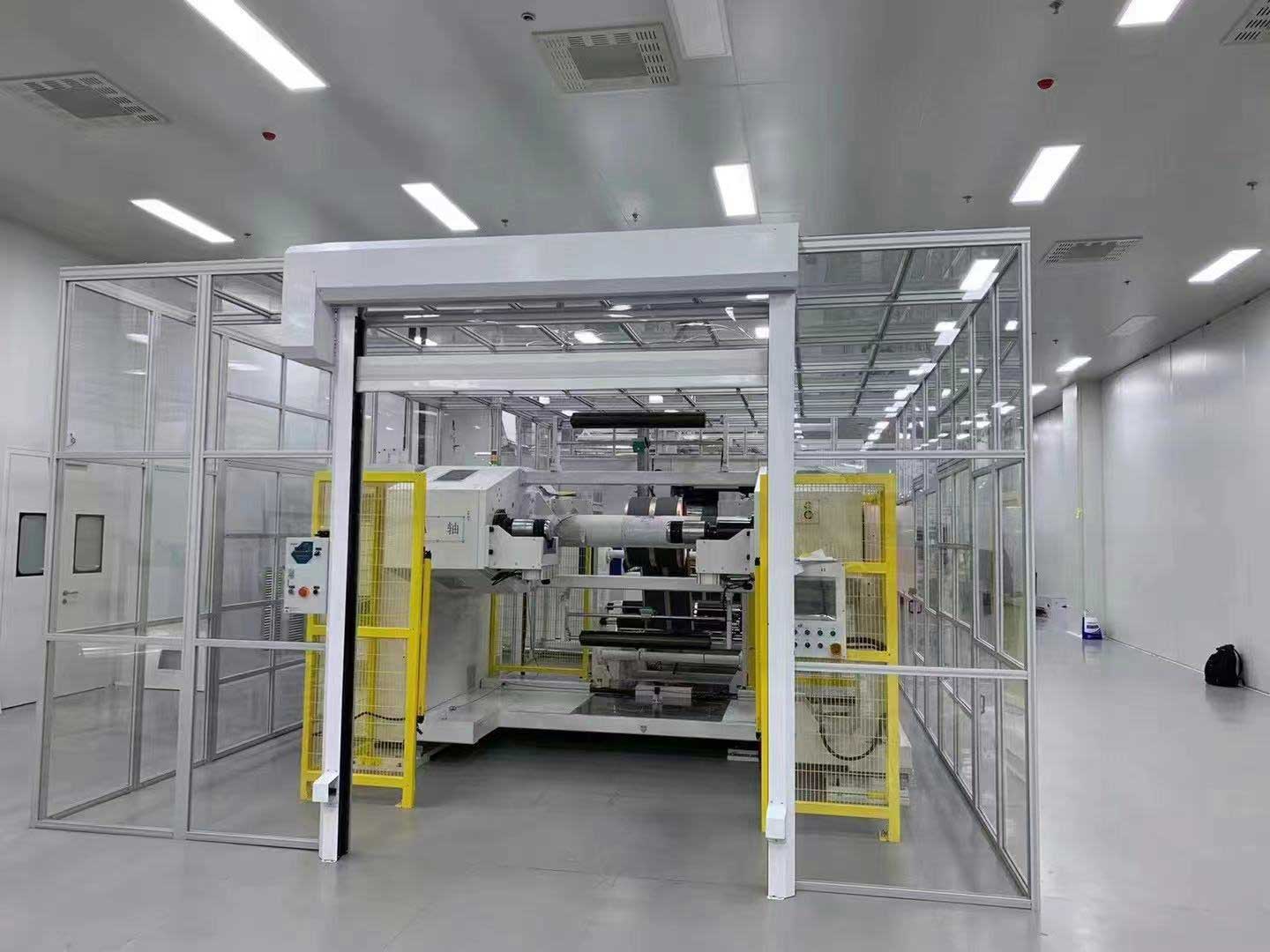

Frame Application

Aluminium profile system includes hundreds of standard profiles as well as thousands of matching components. With the help of this wide range, you can build just about anything; only your imagination sets the limits!
